Hello all,

we are trying ProSBC as possible solution to replace some old SBC and we have some scenarios that is not working at our tests.

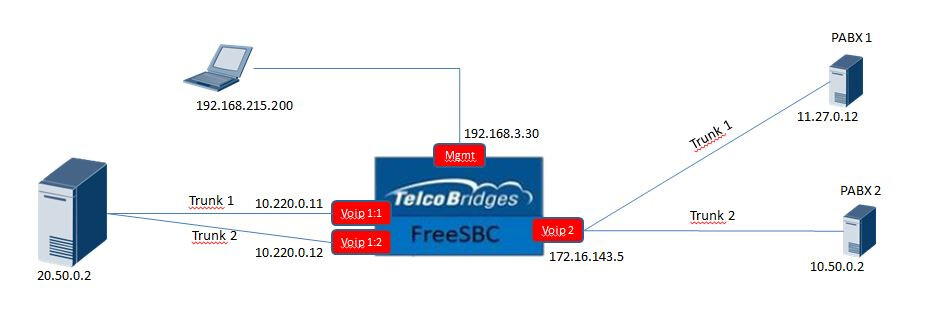

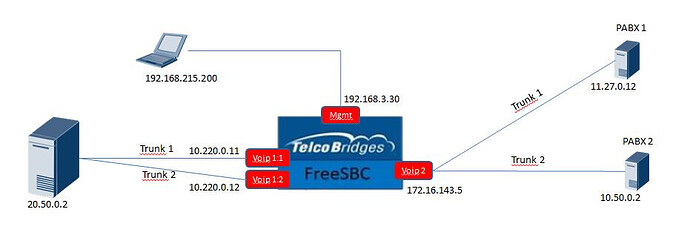

We have a segmented network, where some PABX are at network 11.27.0.0/16 and 10.50.0.0/16 which comunicates with interface Voip 2 (IP 172.16.143.5/28). Our management interface are at IP 192.168.3.30 and comunicate with some networks like 192.168.215.0/24, 192.168.116.0/24. In another side of the SBC the Trunks are transfered like the topology bellow:

image931×317 38.8 KB

At our tests when we try to ping the IPs 11.27.0.12, 11.50.0.2, 20.50.0.2, the FreeSBC send the packets by the Mgmt interface through the gateway of the 192.168.3.30 interface.
is it possible to create static IP Routes to each of this networks? is it done in the freesbc web configuration or I have to do at the comand line at linux?

Thank you in advance.

2

Please try the ping command in following format;

Code:
ping -I interface name IP address

Example;

ping -I voip2 11.27.0.12
