No matching NAP

7. Troubleshooting Troubleshooting
1

I am receiving this error while trying to register to a freepbx behind this SBC.
CTBCAFGateway::OnSipOutOfCallMsgNotif: Received Register message with no matching NAP. Message from src:x.x.x.x(59234) to dst:x.x.x.x(5060) (8200000E) CTBCAFGateway.cpp:5422

I have ran through the documents, and one of the things i have noticed was on version 3.0 there is a Sip domain option under the Nap settings.

In the version i have, i do not have any SIP domain settings under the NAP settings.

I am new to this platform, but i have many VoIP clients i would like to get on here.

2

There is no SIP Domain configuration under the NAP setting in the Release 3.0 or 3.1. Would you follow the following link for configuring the access SBC, please?

https://docs.telcobridges.com/tbwiki/FreeSBC:Remote_Workers:Configuration_A

If you still have problem please contact with support@telcobridges.com with problem screen shots and your database backup.

3

I did that config step by step and at the bottom of the NAP section it says

"9- Associate a SIP Domain with the new NAP. If you have more than 1 domain you need to associate all of them with OPEN NAP/SIP NAP:

Select a sip domain from the Available list
Click “<<” to associate the SIP Domain with the NAP"

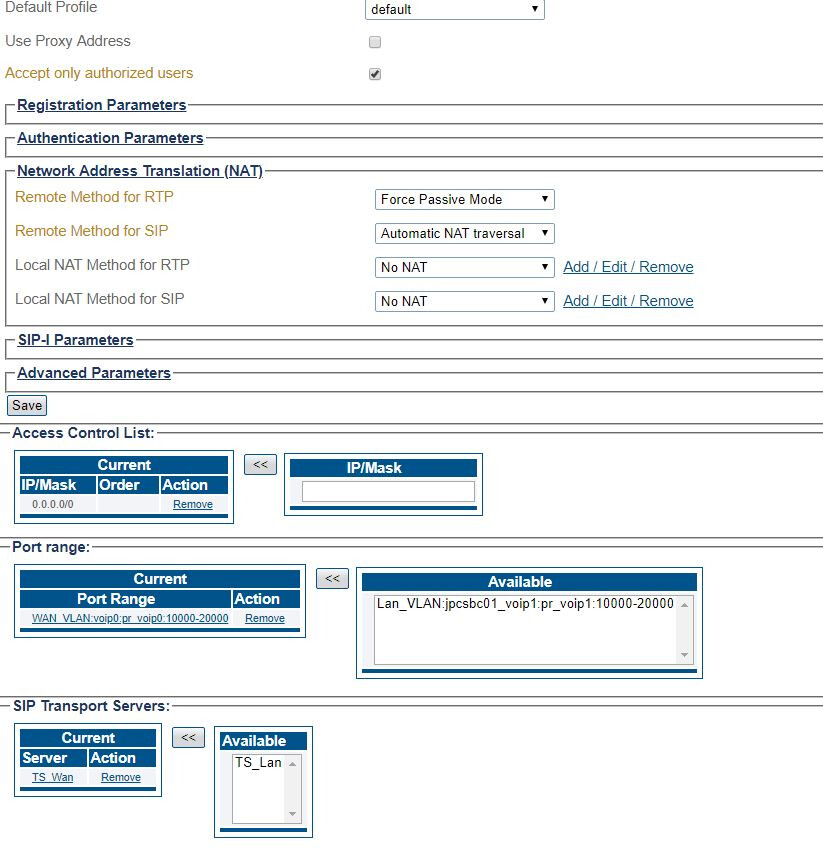

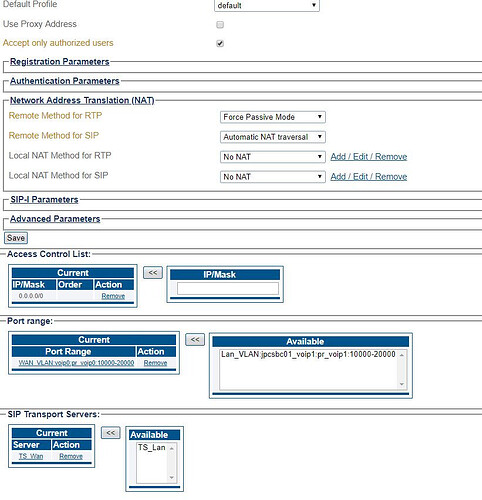

image823×852 122 KB

4

Hi

You are right. There is a problem in the wiki. You need to associate the SIP domain with NAP from SIP Domain menu not from the NAP menu.

5

The wiki updated. Please check and follow up again.
