NAP status red with Availability at 0 percent and Shared usage at 100 percent

7. Troubleshooting Troubleshooting
1

Hello,

I am trying lab test FreeSBC but I am having trouble getting the NAP to run.

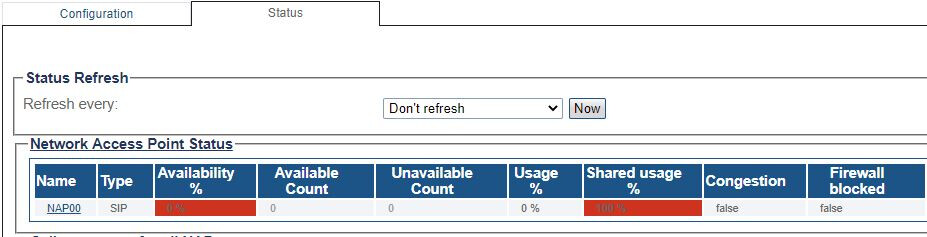

The status is constantly Red and shows 0 availability.

image927×237 47.4 KB

here is some information about my setup:

-Installed on ESXI 7.0

-Output from: lspci |grep Ethernet
02:00.0 Ethernet controller: Intel Corporation 82545EM Gigabit Ethernet Controller (Copper) (rev 01)
02:01.0 Ethernet controller: Intel Corporation 82545EM Gigabit Ethernet Controller (Copper) (rev 01)

  • cat /proc/cpuinfo
    processor : 0
    vendor_id : GenuineIntel
    cpu family : 6
    model : 58
    model name : Intel(R) Core™ i5-3470 CPU @ 3.20GHz

I did run across a similar Post Previous Post on Cant Get NAP Up but it mentions the CPU type and requesting another license.

Any help on this is greatly appreciated.

Thanks,

2

Ok, I had set my processors to 4 which is too many. Shocked

I set it to 2 and now the NAP is Green.

Thanks,

Lorenzo Smile
